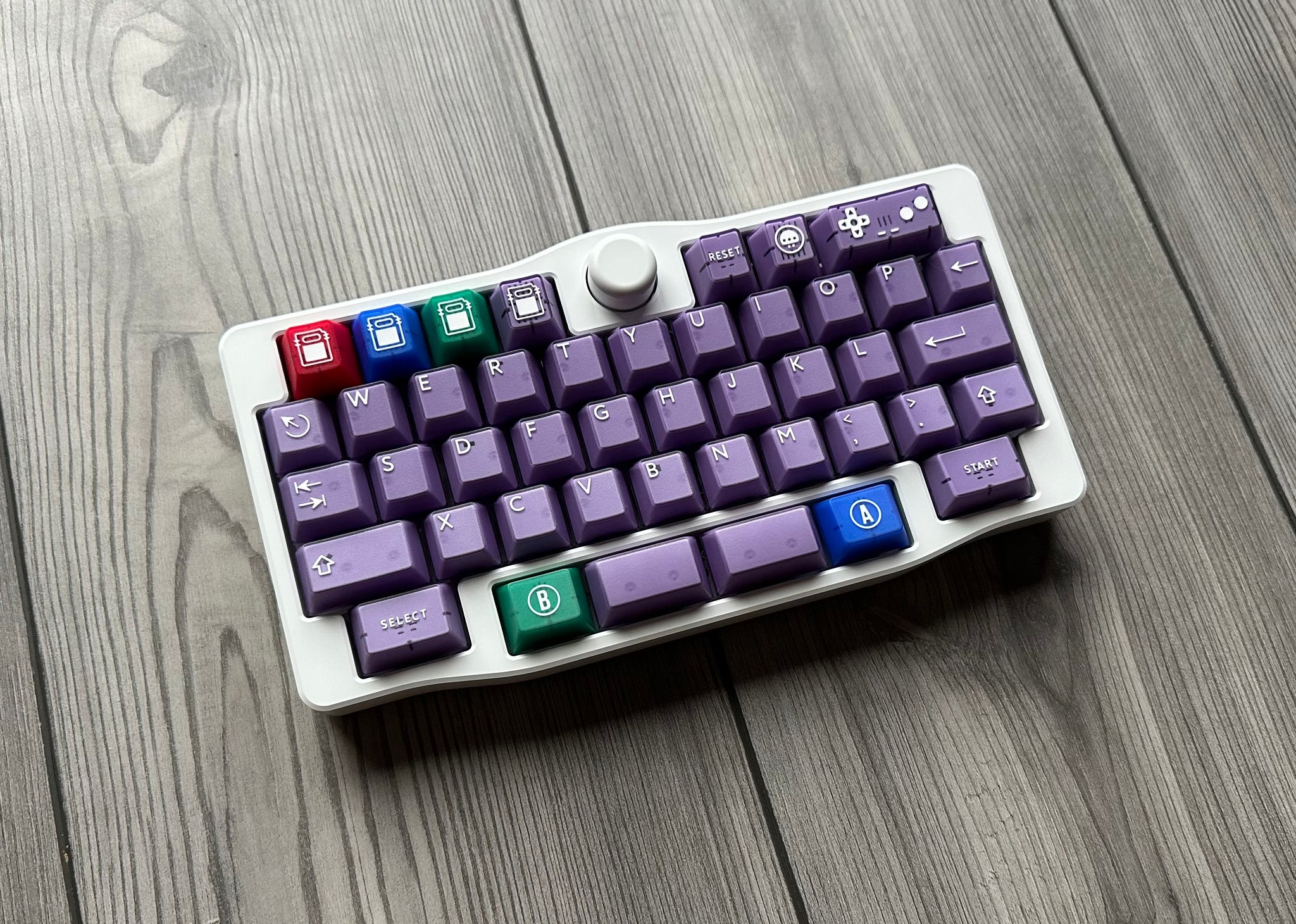

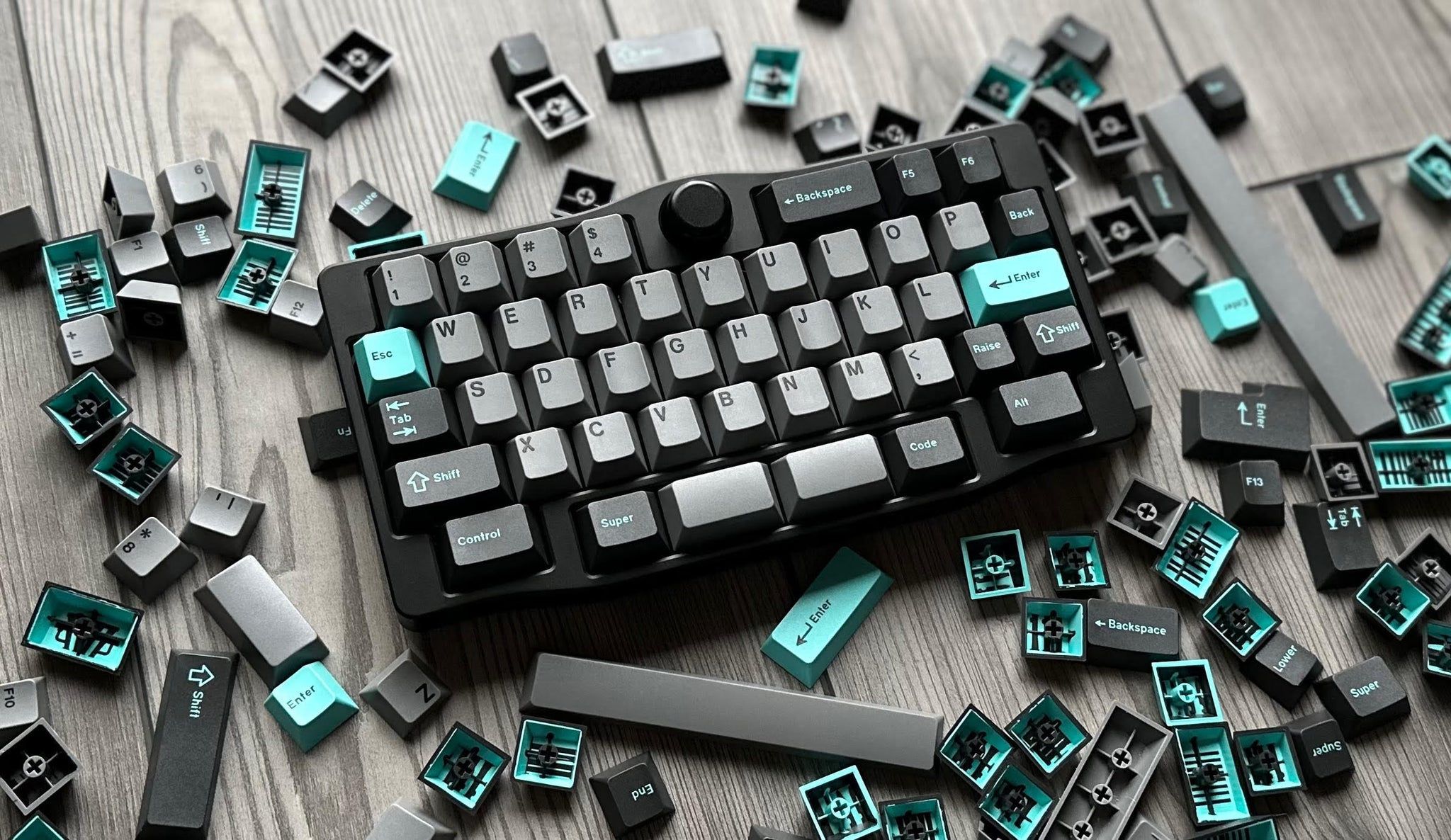

Oracle is a unique 11-unit-wide premium 30% mechanical keyboard that incorporates an atypical fifth row on top. With a full number array layered elsewhere, the top row keys and knob allow the user quick access to common shortcuts, hotkeys, standard and dynamic macros, volume control, etc.
Alternatively, users can get creative with the keymap and use Oracle for gaming with relative ease. The kit assembly uses a 4.35mm thick 3D printed carbon fiber switch plate and is mounted to the case via the PCB using silicone tadpoles and flex cuts. This provides a satisfying and unique typefeel with deep and consistent sound. Whether you like an ortholinear or standard key layout, the Oracle has a setup for any 30% keyboard enthusiast to enjoy
Kit Details
- 6061 Aluminum top with 2 finish options: Anodized Black, Electrostatic Painting White

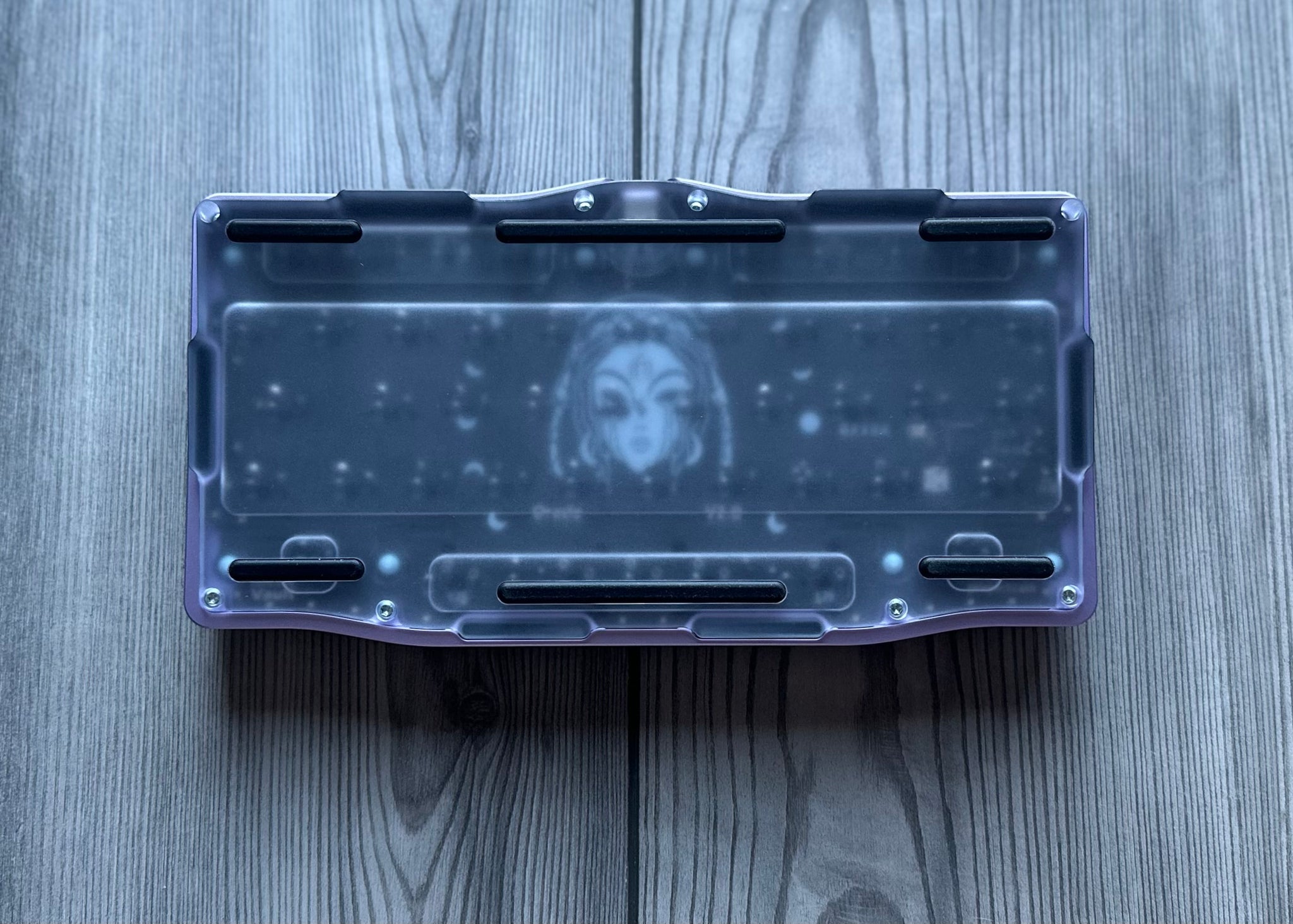

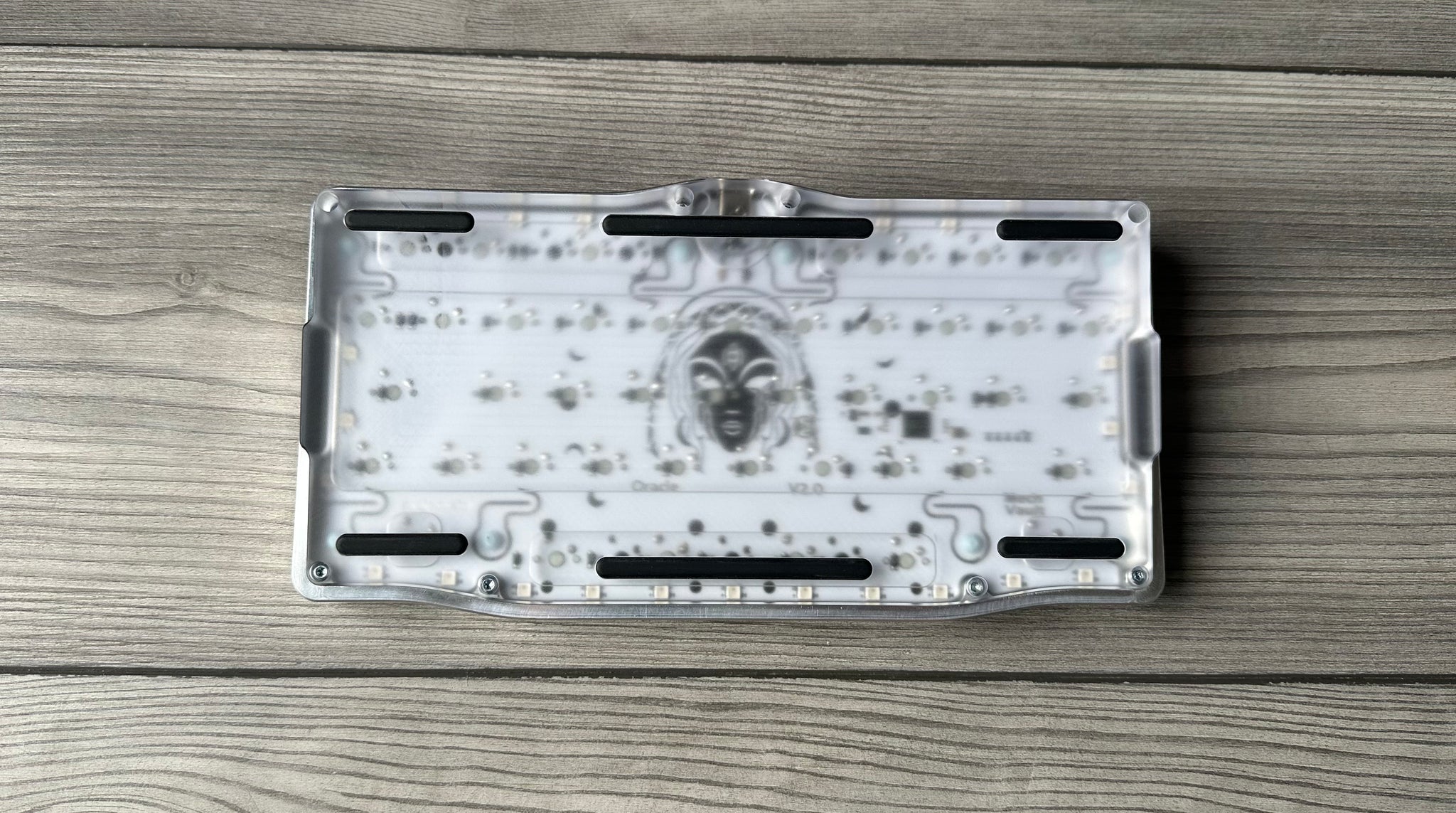

- Bead Blasted Polycarbonate Bottom
- Low-Profile rotary encoder knob matching chosen case top finish
- Silicone tadpole+flex cut mounting style with 4.35mm 3D printed carbon fiber switch plate
- 4.5 degree typing angle
- Oracle’s PCB operates on an RP2040 controller which will allow for all QMK or Vial firmware features to be enabled with room to spare. The board can be programmed by plugging it in and navigating to vial.rocks on a chrome web browser. For more granular control, source code is available here.

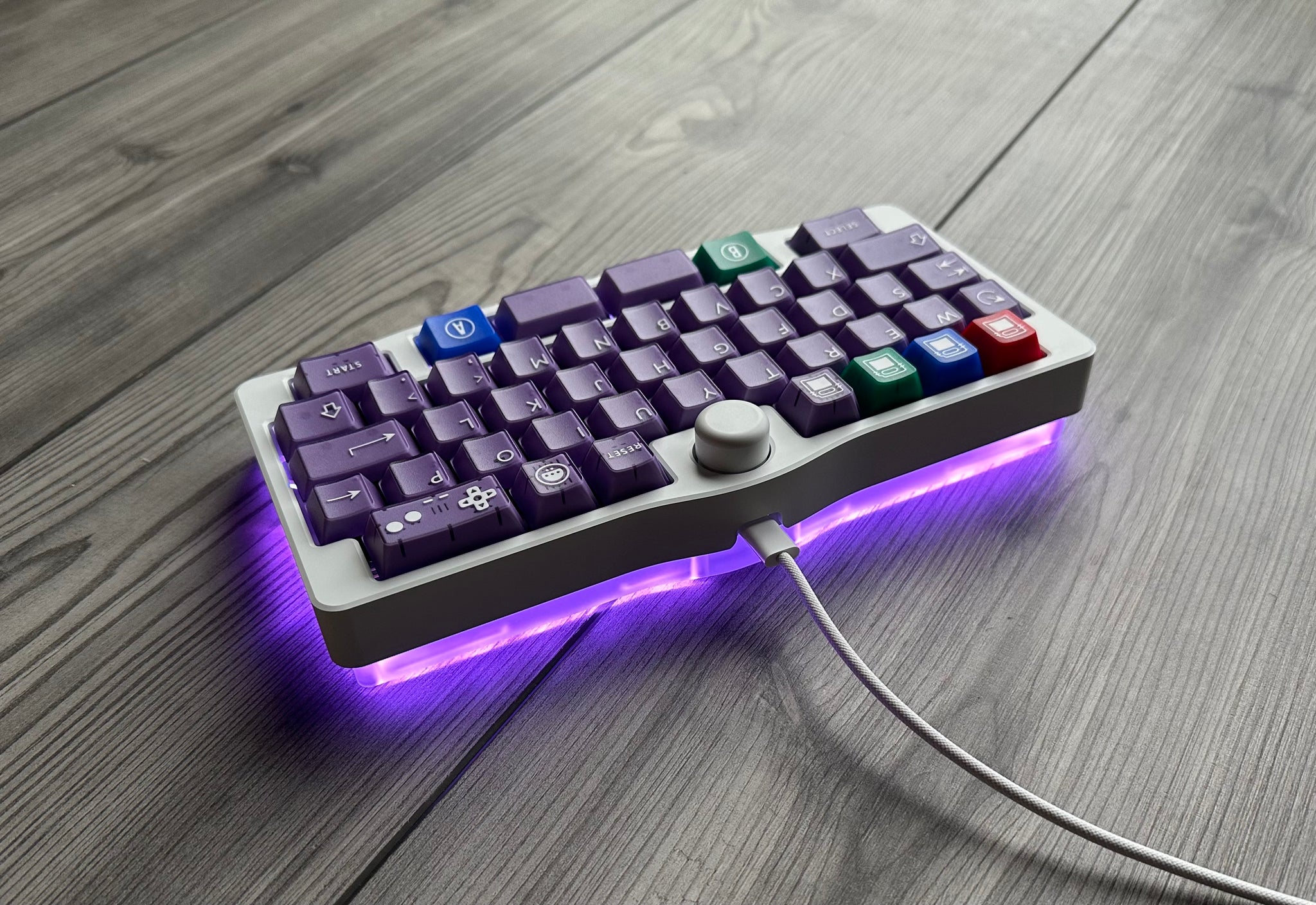

- 29 integrated addressable RGB underglow LEDs
Sold as in-stock and shipping within 3 business days while supplies last
Kit Contents
- Oracle Case Top
- Oracle Case Bottom
- Oracle Case Knob (matching case top color/finish)
- Rotary Encoder (detented)

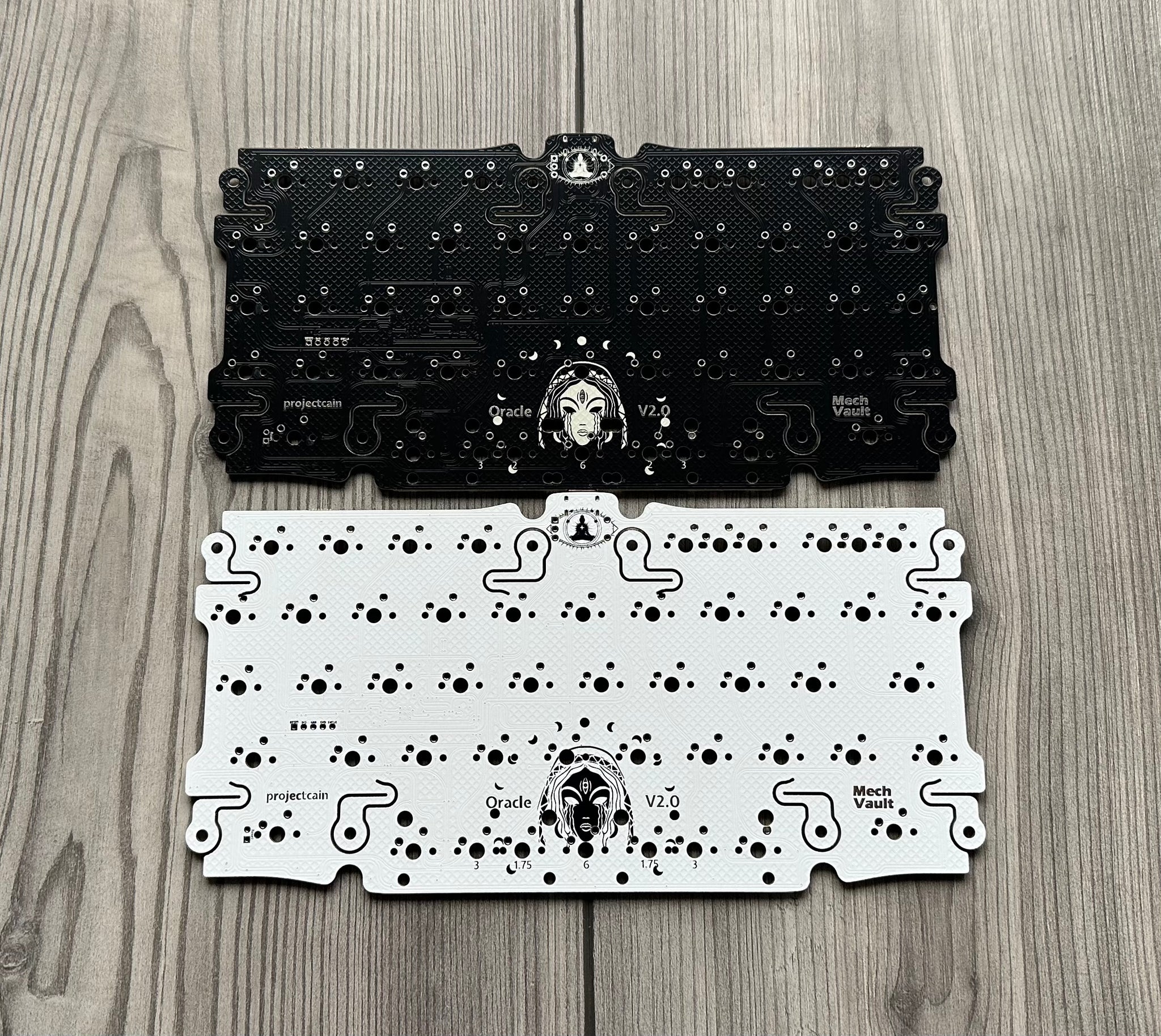

- Assembled RP2040 PCB
- 0.75mm Buna Rubber PCB Overlay

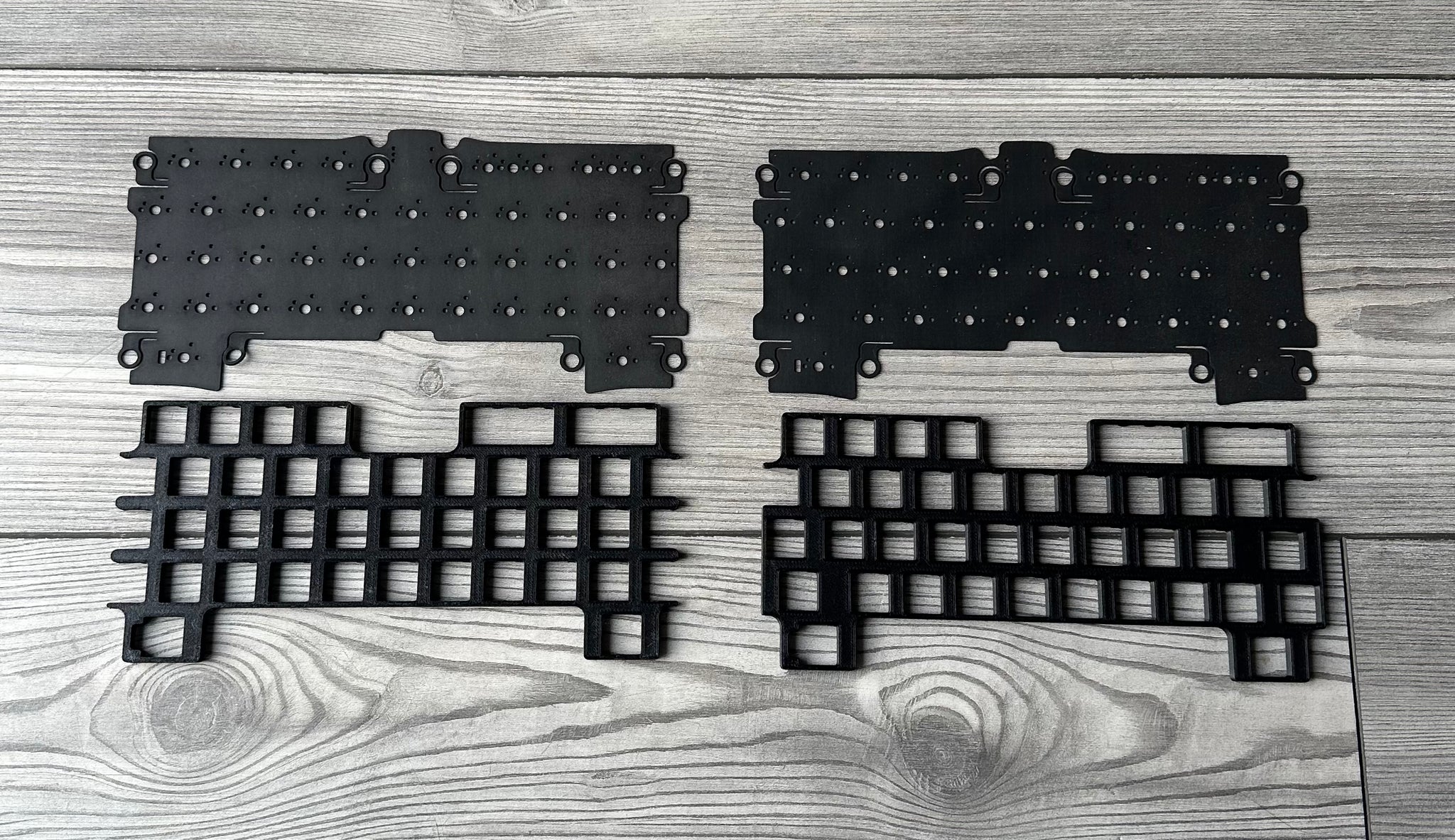

- 4.35mm 3D Printed Carbon Fiber Switch Plate
- 8 qty silicone tadpole PCB mounts
- 8 qty M2.5 x 5mm case screws (Torx T8)
- Custom MechVault silicone feet
All customers will need switches, keycaps, and (if applicable) stabilizers to complete this kit. Soldering knowledge is also required for assembly
Complementary build services are available for this purchase. If needed, please use the contact link at the top of the page before ordering
